Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps

Kuantitas min Order : 10pc Harga : Negotiated
Kemasan rincian : kotak sebagai persyaratan Waktu pengiriman : 20-30 hari
Syarat-syarat pembayaran : T/T, Western Union, L/C Menyediakan kemampuan : 10000PC/Bulan
Tempat asal: Dibuat di Cina Nama merek: JR
Sertifikasi: iso9001 Nomor model: SRU5-116HD

Informasi Detail

Bahan: SIK SIK FKM Fungsi: Untuk pompa oli, pompa air
Paket transportasi: kotak Kode HS: 848420090
Sertifikat: ISO9001 Jenis: John crane mechanical seal di pompa logam bellow seal 515E
Standar atau tidak stabil: Standar Spesifikasi: 515E John crane seal mekanik
Ukuran: inci sebagai gambar Nama Produk: Metal bellow segel mekanis 515E

Deskripsi Produk

Single Mechanical Seal Alfa Laval SRU Rotary Lobe Pump R90-SRU5/116/HD


Operational Conditions:

  1. tructure: Single-End
  2. Pressure: Medium Pressure Mechanical Seals
  3. Speed: High Speed Mechanical Seal
  4. Temperature: High Temperature Mechanical Seal
  5. We have single seals and double seals.

Materials:

  • Face: Carbon, SiC, TC
  • Seat: Ceramic, SiC, TC
  • Bellow: NBR, EPDM, FKM ,Aflas,FEP,Kalrez,Grofoil etc.
  • Spring: SS304, SS316
  • Metal parts: SS304, SS316

Performance Capabilities:

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
 55MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

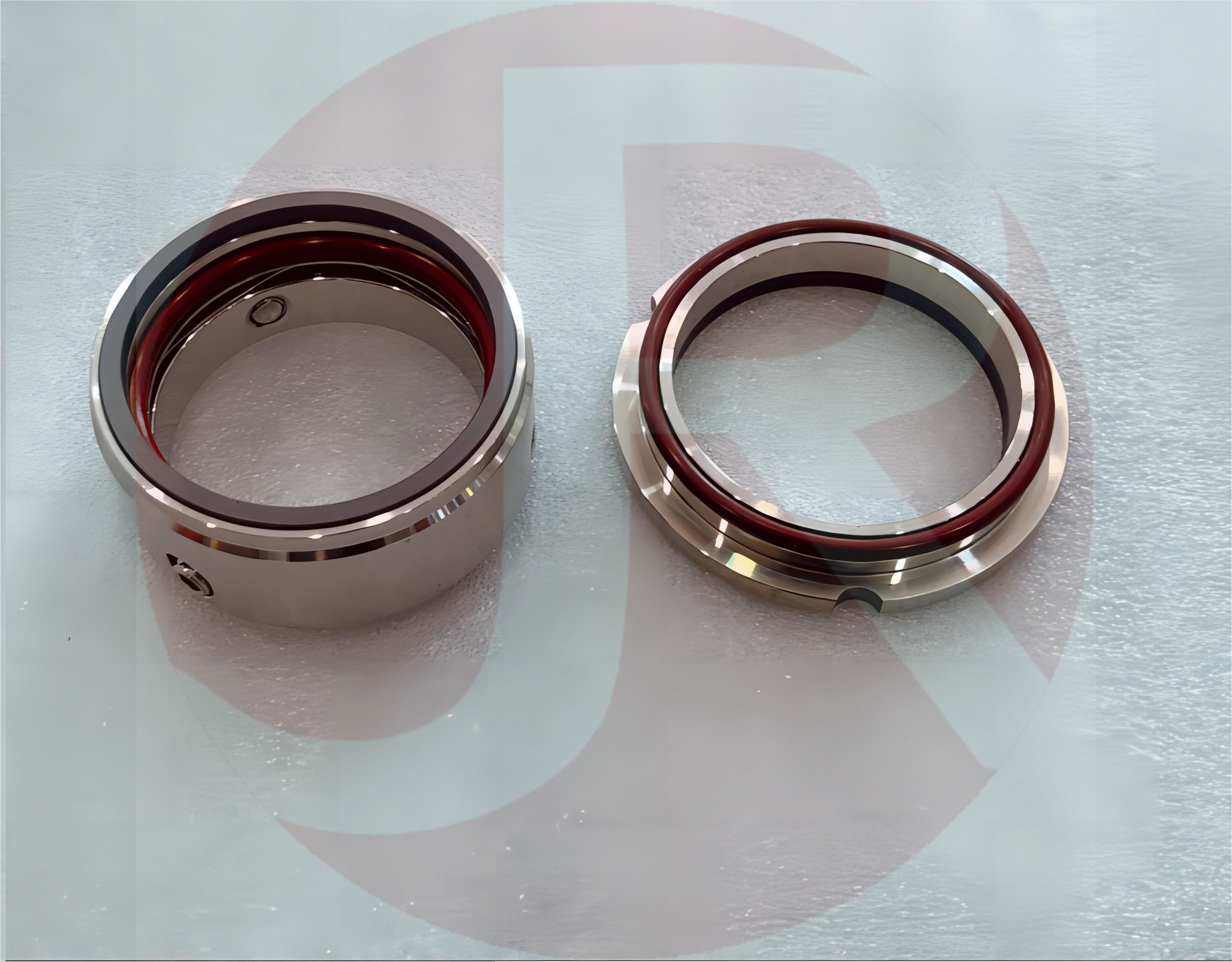

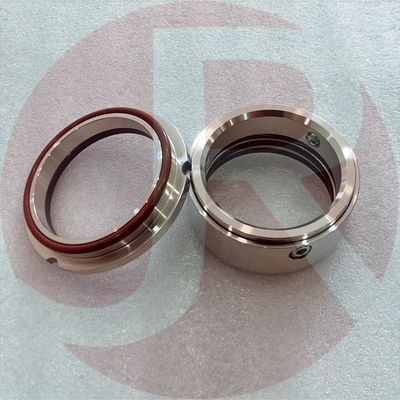

 Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps 0

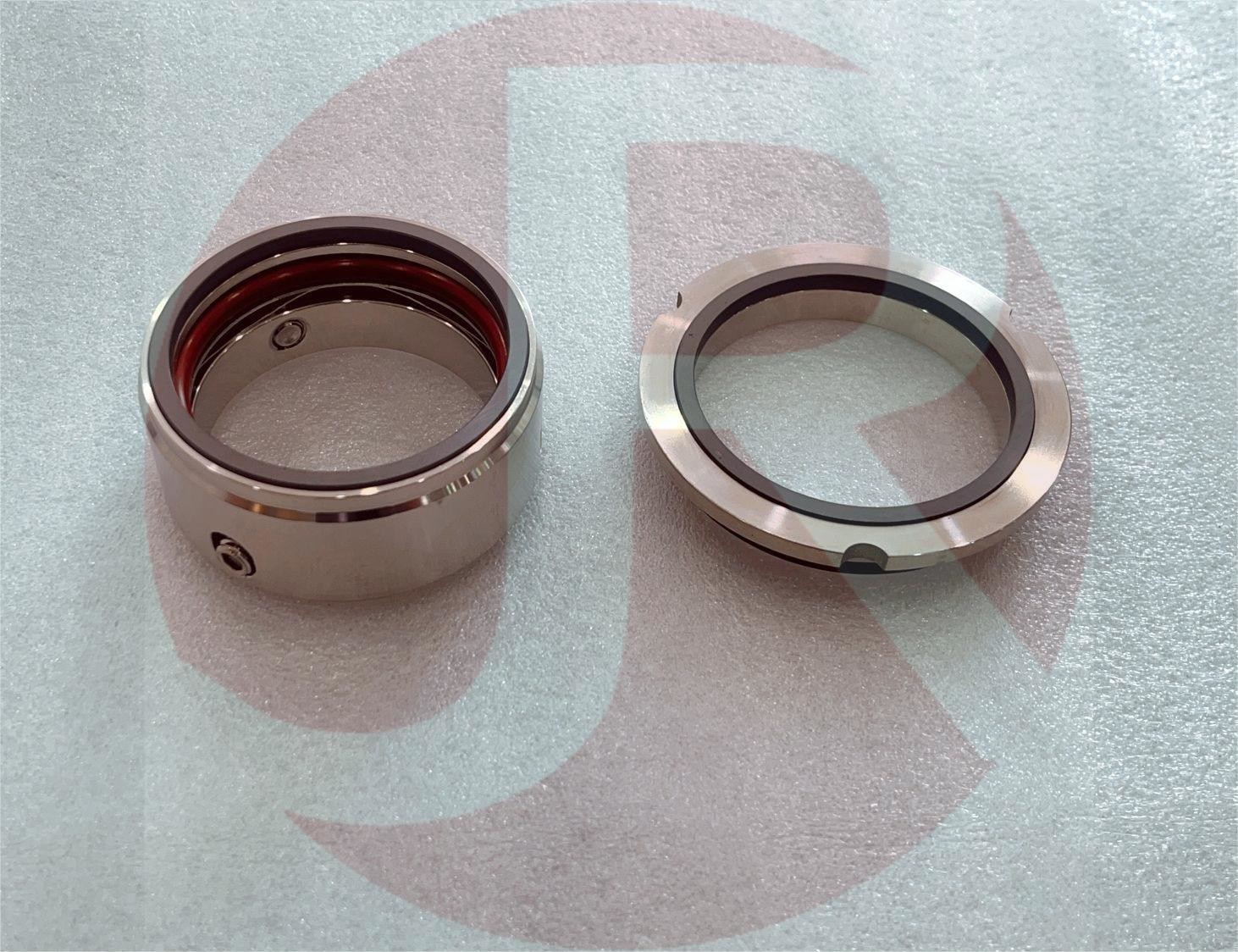

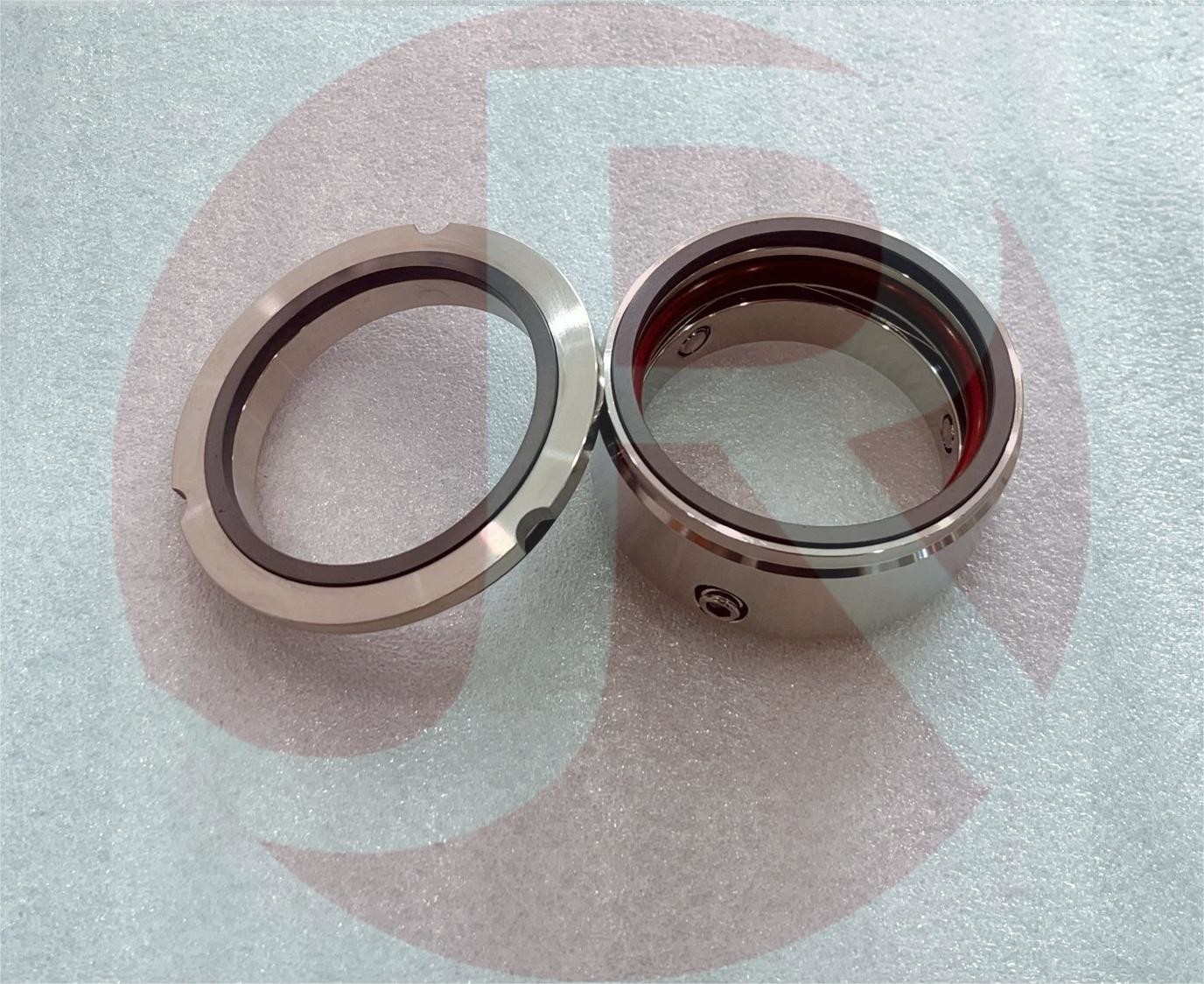

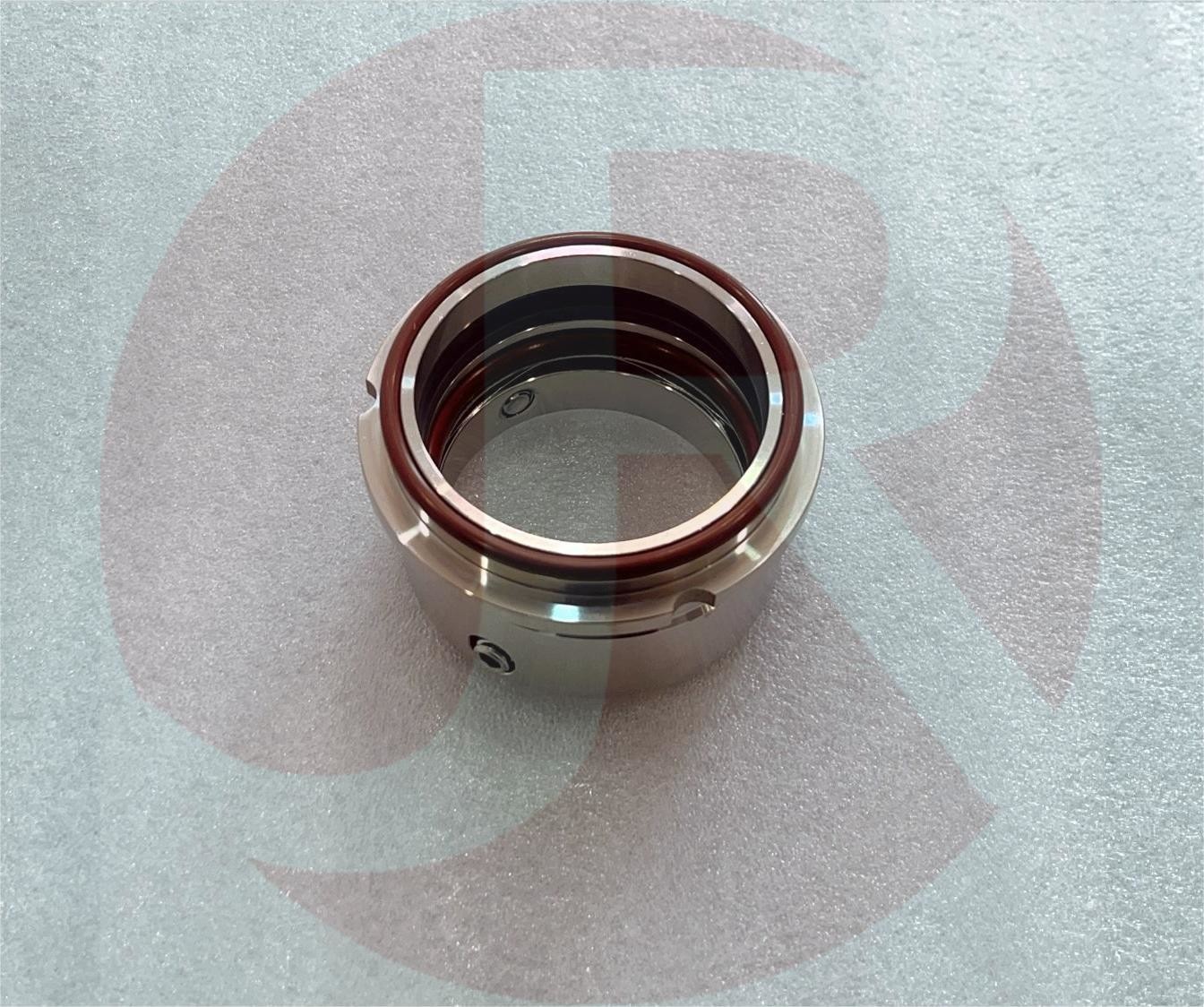

Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps 1Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps 2Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps 3Alfa Laval SRU R90 Rotary Lobe Pump Mechanical Seal for Food Pumps 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
