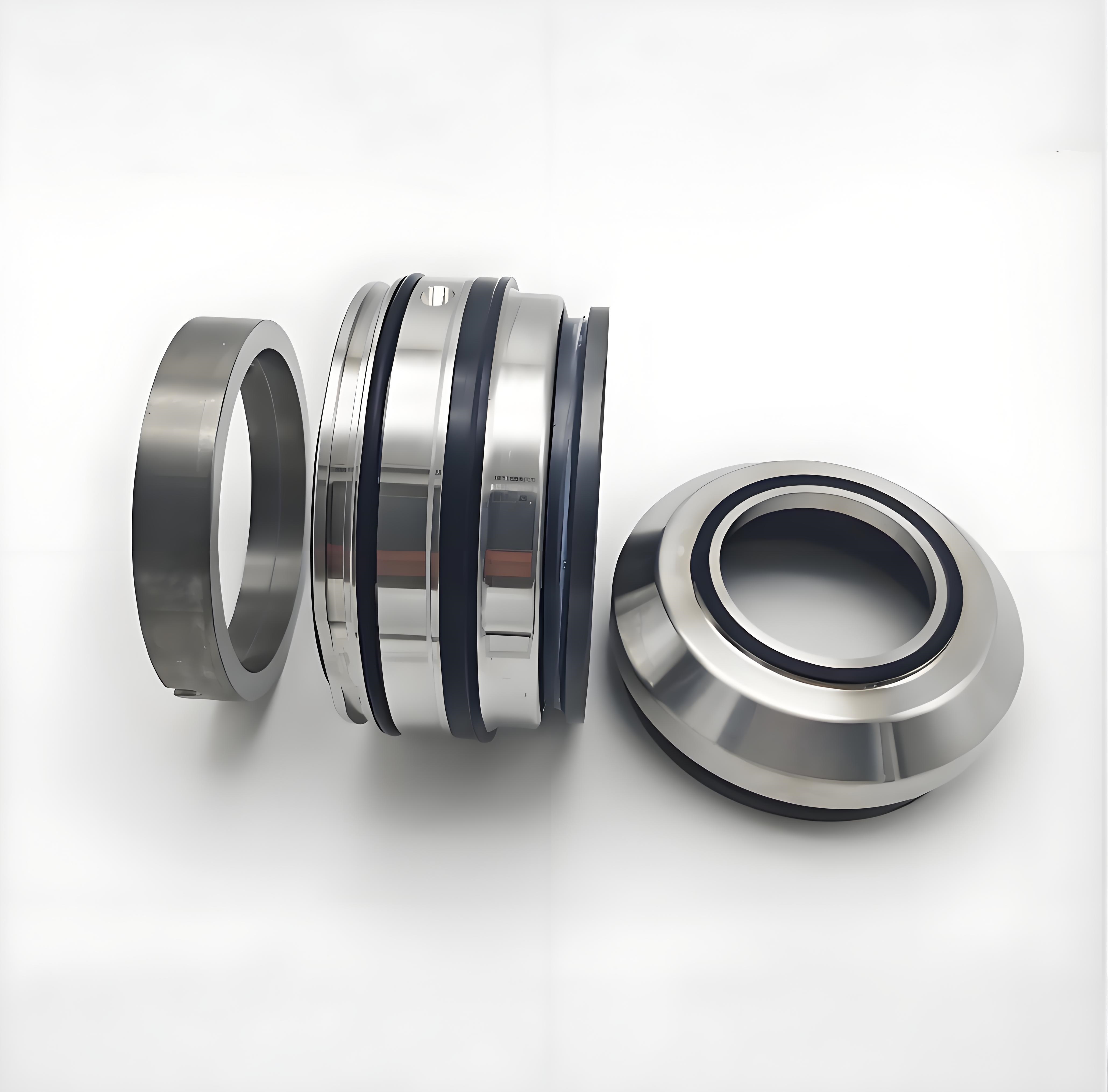

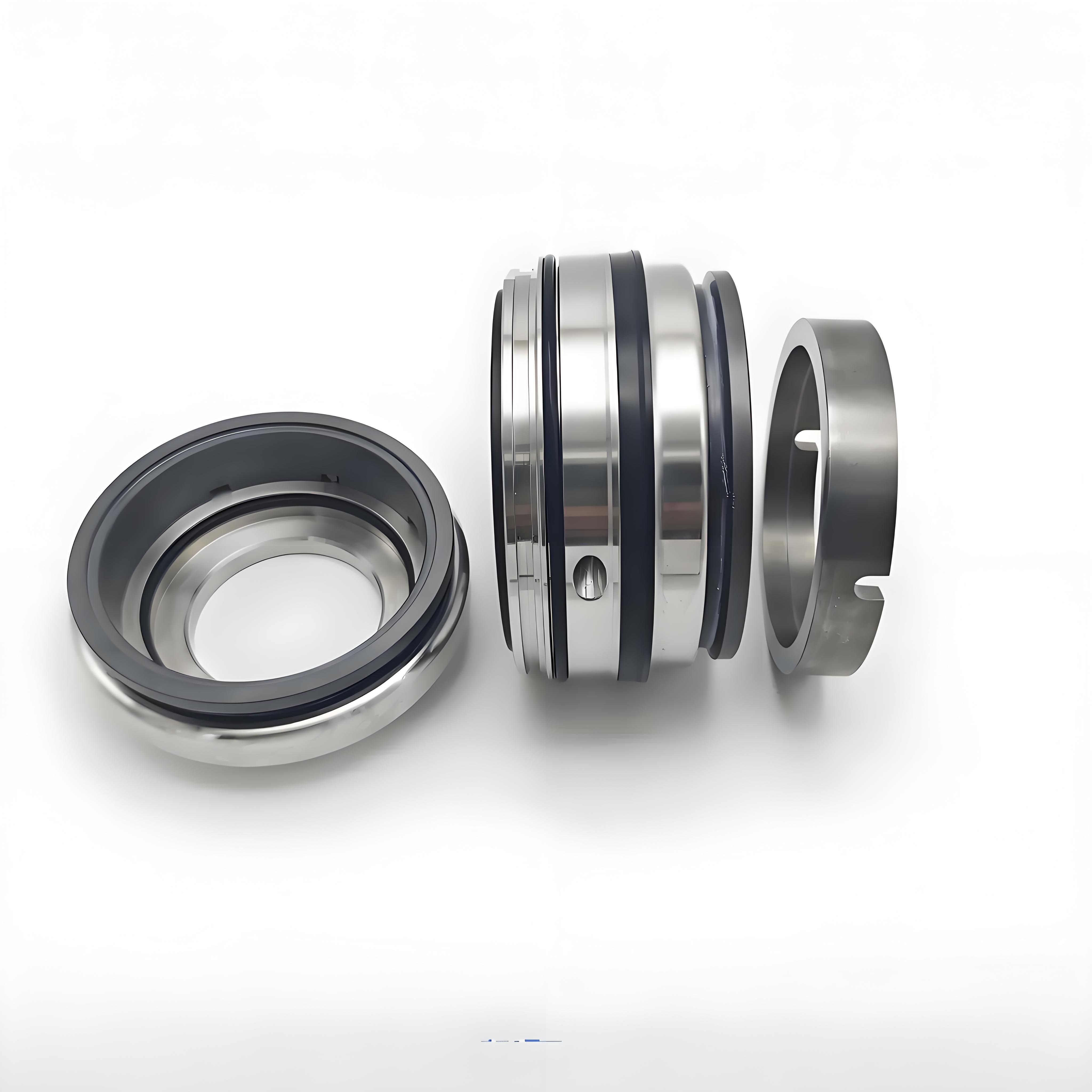

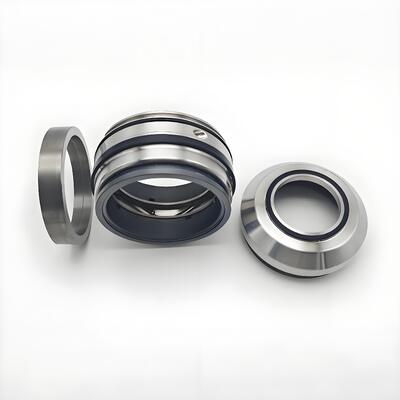

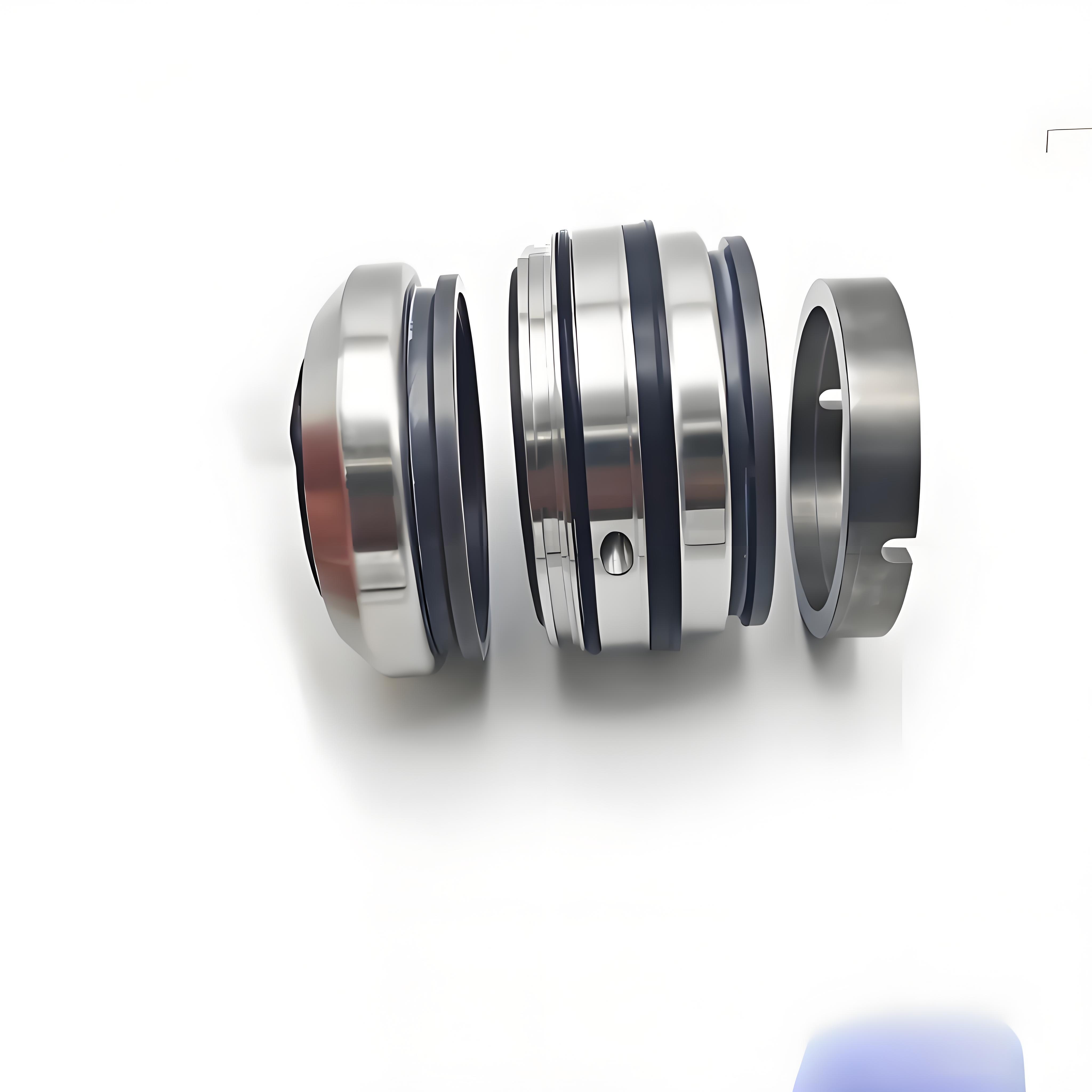

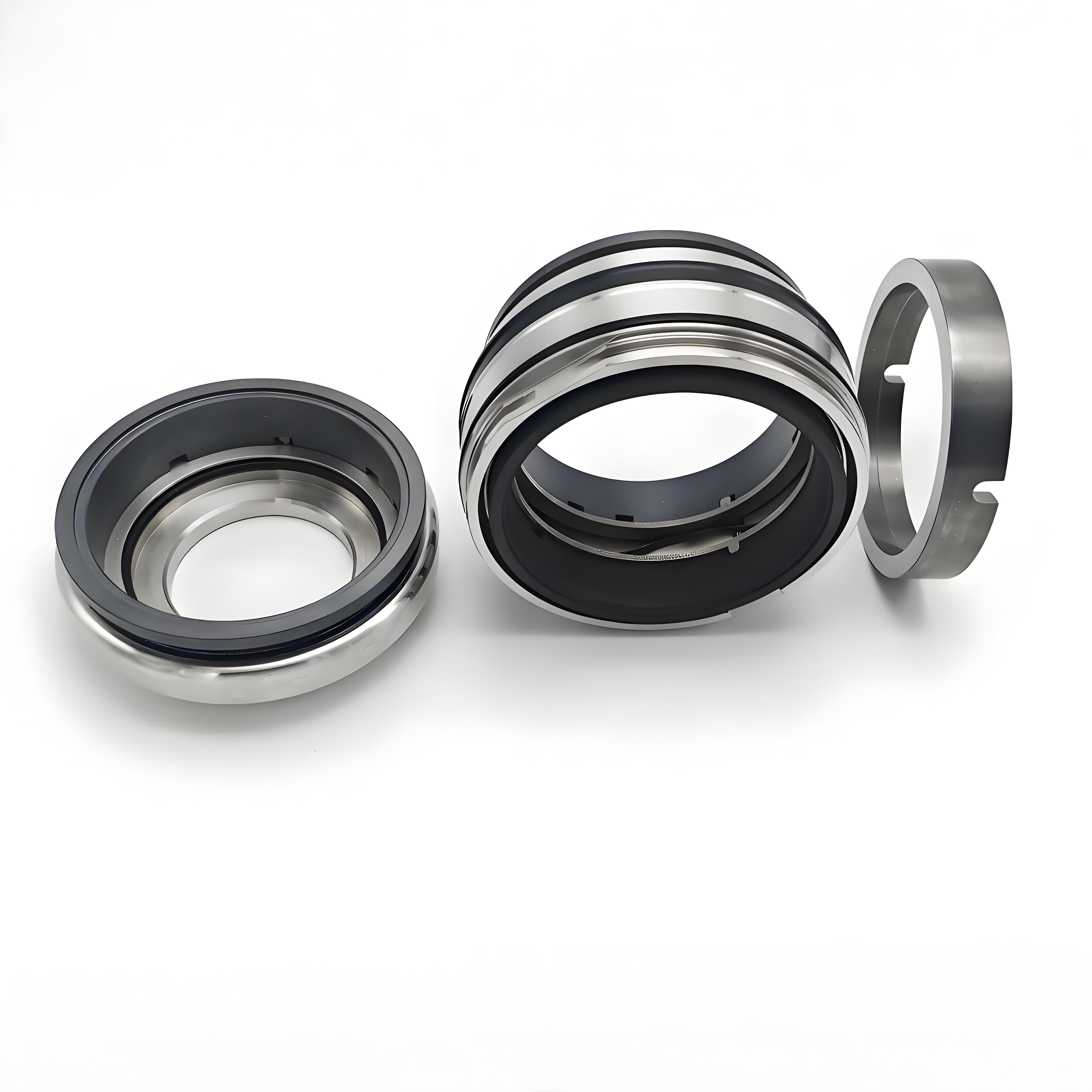

BCH-080 Durable Mechanical Seal for Fristam FDS4 Pump Featuring SIC/SIC/HNBR/C-TC-HNBR Material

Kuantitas min Order : 5 buah Harga : Negotiated
Kemasan rincian : kotak sebagai persyaratan Waktu pengiriman : 20-30 hari
Syarat-syarat pembayaran : T/T, Western Union, L/C Menyediakan kemampuan : 100000PC/Bulan
Tempat asal: Dibuat di Tiongkok Nama merek: JR
Sertifikasi: ISO9001 Nomor model: Fristam Art. Seni Fristam. No. 0782515001 GLRD FDS2 No.0782515001 GLRD FDS2<

Informasi Detail

Bahan: SIC SIC FKM CAR CER NBR Fungsi: untuk Pompa Minyak, Pompa Air
Paket Transportasi: Kotak Kode HS: 848420090
Spesifikasi: 68 Sertifikat: ISO9001
Jenis: Untuk Fristam Art. No. 0782515001 GLRD FDS2seal Standar: Standar
Gaya: segel mekanis Nama Produk: <i>Fristam Art.</i> <b>Seni Fristam.</b> <i>No. 0782515001 GLRD FDS2</i> <b>No.0782515001 GLRD FDS2<

Deskripsi Produk



Operational Conditions:

  1. Mechanical Seal for Fristam Pump
    Model: FDS 3-4
    Serial No: 5730750207
    Job No: P-2010810
    Media: Vegetable Oil
  2.

    Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

    Available in Food Grade materials as standard (with FDA compliant materials).

  3. Wave spring mechanical seal

  4. Mediums: Water, oil, weak acid, weak alkali, etc.
  5. Temperature: -20°C~200°C
  6. Pressure: ≤0.8MPa
  7. Speed: ≤ 15m/Sec

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities

  • Shaft Dia.: 80mm
    Seal face, Inboard: SIC(Y)-SIC(Y);Seal faces,outboard:Carbon-Tc;Elastomers,Inboard:HNBR/FDA;
    Elasters,Outboard:HNBR/FDA; Spring:17-7PH;Steel,Inboard:EN 1.4404(AISI316), Steel,Outboard:EN1.4404(AISI316)
  •






BCH-080 Durable Mechanical Seal for Fristam FDS4 Pump Featuring SIC/SIC/HNBR/C-TC-HNBR Material 1BCH-080 Durable Mechanical Seal for Fristam FDS4 Pump Featuring SIC/SIC/HNBR/C-TC-HNBR Material 2BCH-080 Durable Mechanical Seal for Fristam FDS4 Pump Featuring SIC/SIC/HNBR/C-TC-HNBR Material 3



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
