Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM

Kuantitas min Order : -50℃~+85℃ Harga : Negotiated
Kemasan rincian : kotak sebagai persyaratan Waktu pengiriman : 10 hari
Syarat-syarat pembayaran : T/T, Western Union, L/C Menyediakan kemampuan : 10000000pc/bulan
Tempat asal: Dibuat di Tiongkok Nama merek: JR
Sertifikasi: iso9001 Nomor model: Vulkan Tipe 194

Informasi Detail

Bahan: Sic sic fkm cer mobil nbr Fungsi: untuk Pompa Minyak, Pompa Air
Kode HS: 848420090 Spesifikasi: Segel Burgmann 155 Segel Mekanik
Sertifikat: ISO9001 Jenis: segel burgmann MG1
Standar atau tidak stabil: Standar Ukuran: 12-40mm
Nama Produk: Segel mekanis MG1 Mencicipi: diizinkan

Deskripsi Produk

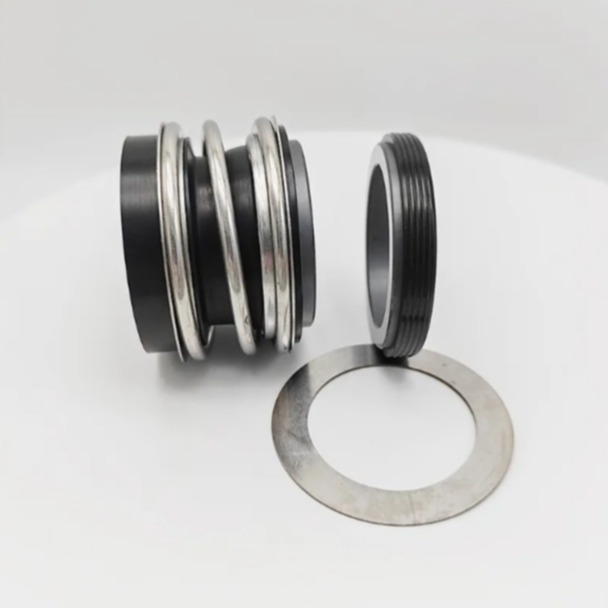

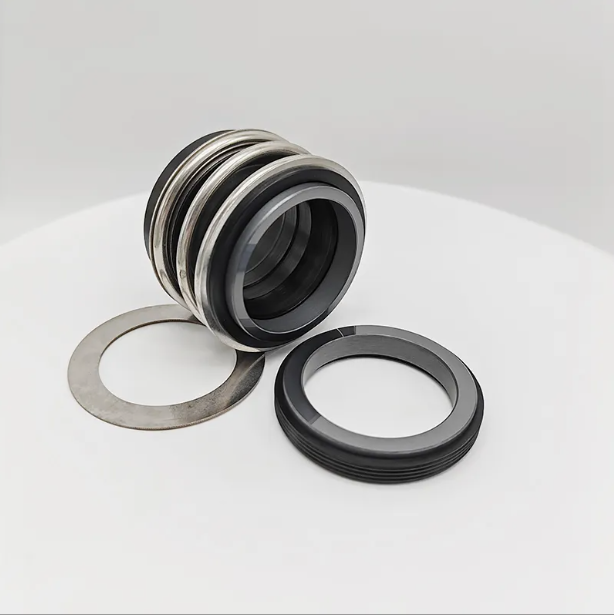

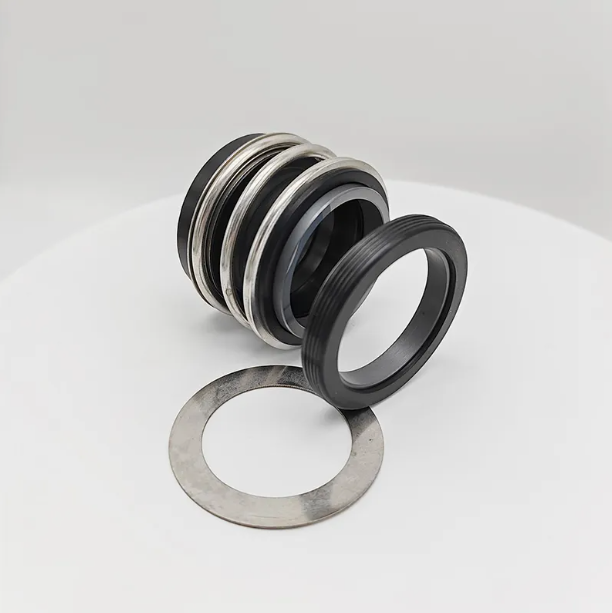

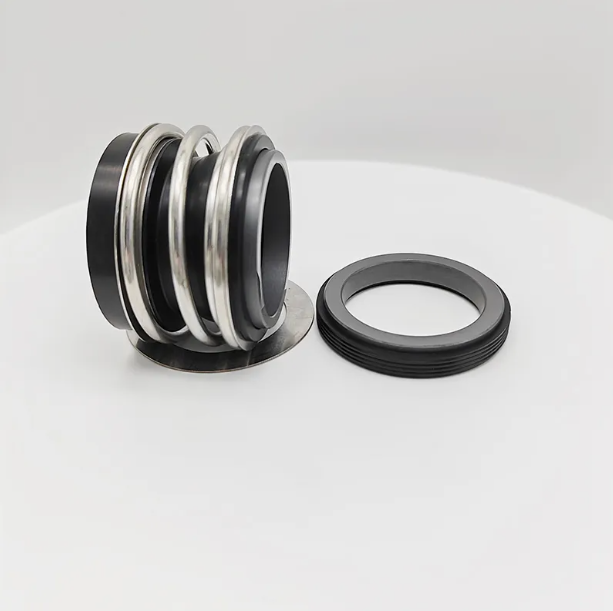

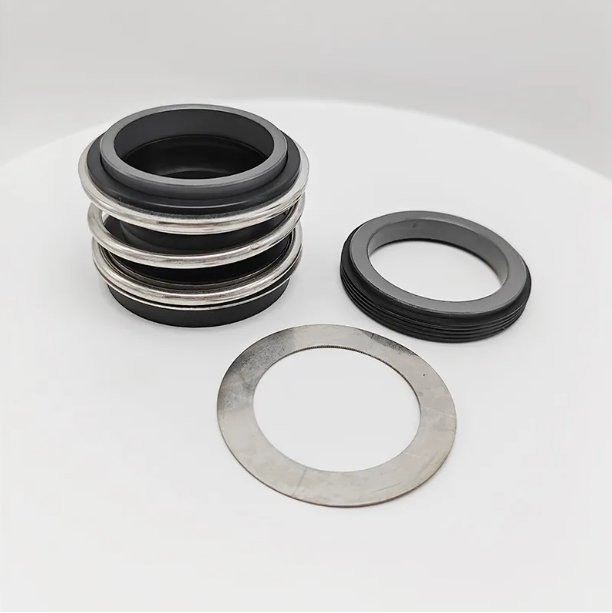

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM



Operations Conditions:



  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 28 28.575 38.1 50.8 63.5 76.2mm
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 0

Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 1Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 2Mechanical Seal Vulcan Type 194 Rubber Bellows Shaft Seals for Hidrostal Pumps Silicon/Silicon/FKM 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
